AMT TA6 - Double Soprano/Single Tenor, Alto and Bari Saxophone Mic with Quantum 7 Wireless System

$1,716.00
US Taxes included
Description

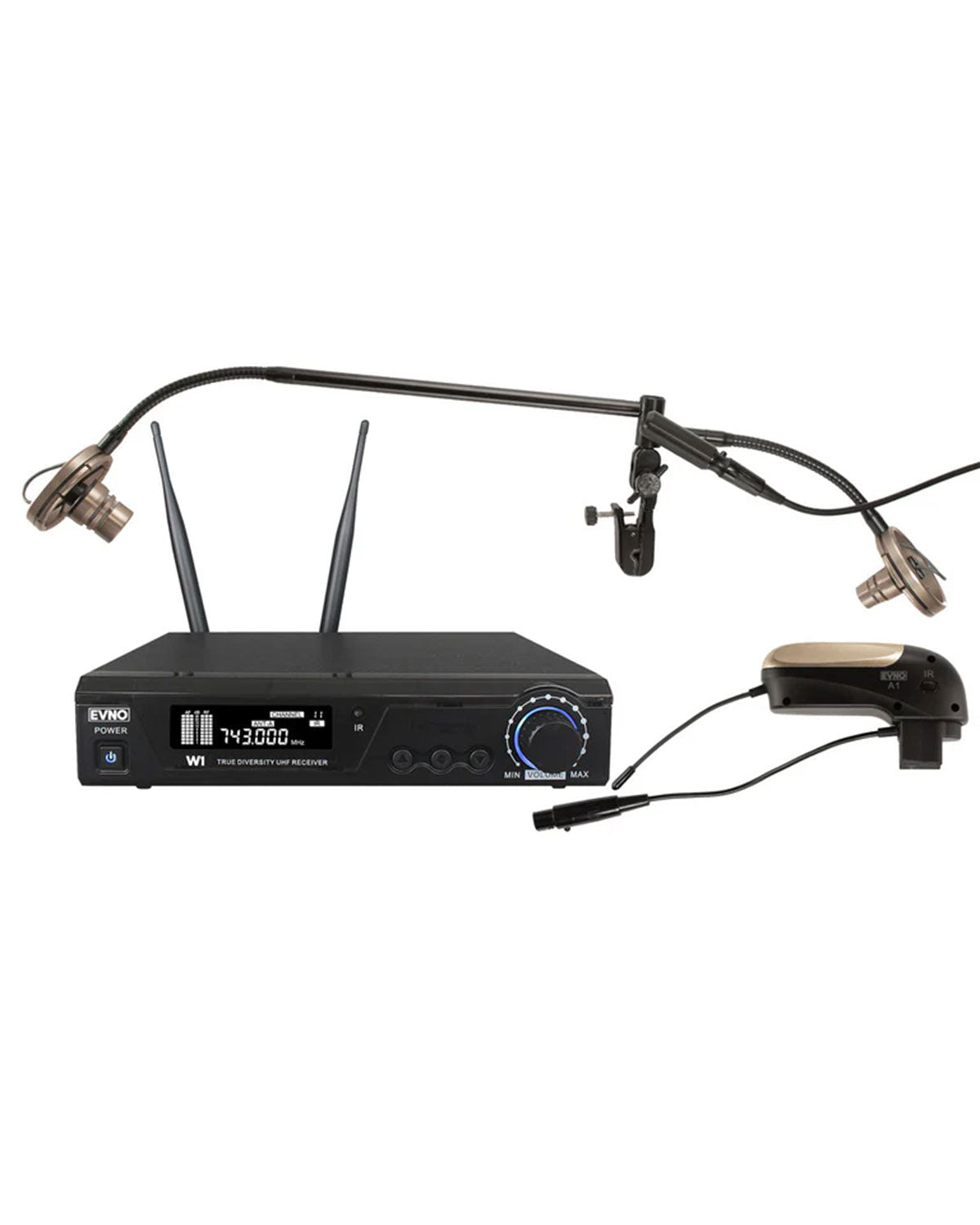

Complete true diversity wireless microphone system for saxophone (Includes Quantum7 Wireless system, AA powered clip-on transmitter, true diversity 99-channel receiver, AMT TA6  sax microphone, rack-ears, and extension cables.

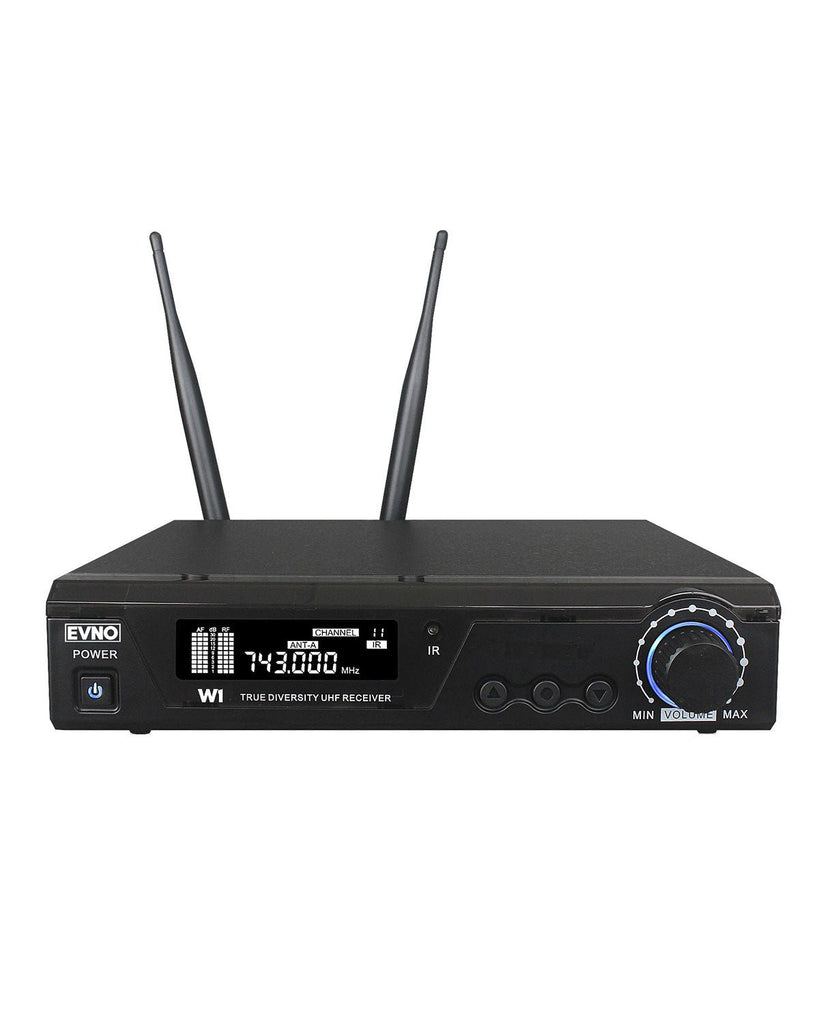

The AMT Quantum 7 is a high quality diversity wireless system designed for musical instruments. With 100 channels to choose from (region dependent) the system is simple to use while providing professional quality sound. The Q7 works with all past and present AMT models that include a disconnect (D.C .T.). Clip on the transmitter to create an operating environment free of belt packs and wires. The receiver is a true diversity design allowing the wireless reception up to approximately 100 meters. The receiver is constructed with a rugged metal chassis which includes both a 1/4 in and XLR output. It includes high quality transient response, no delay, no background noise, with multi-level narrow band filter technology.

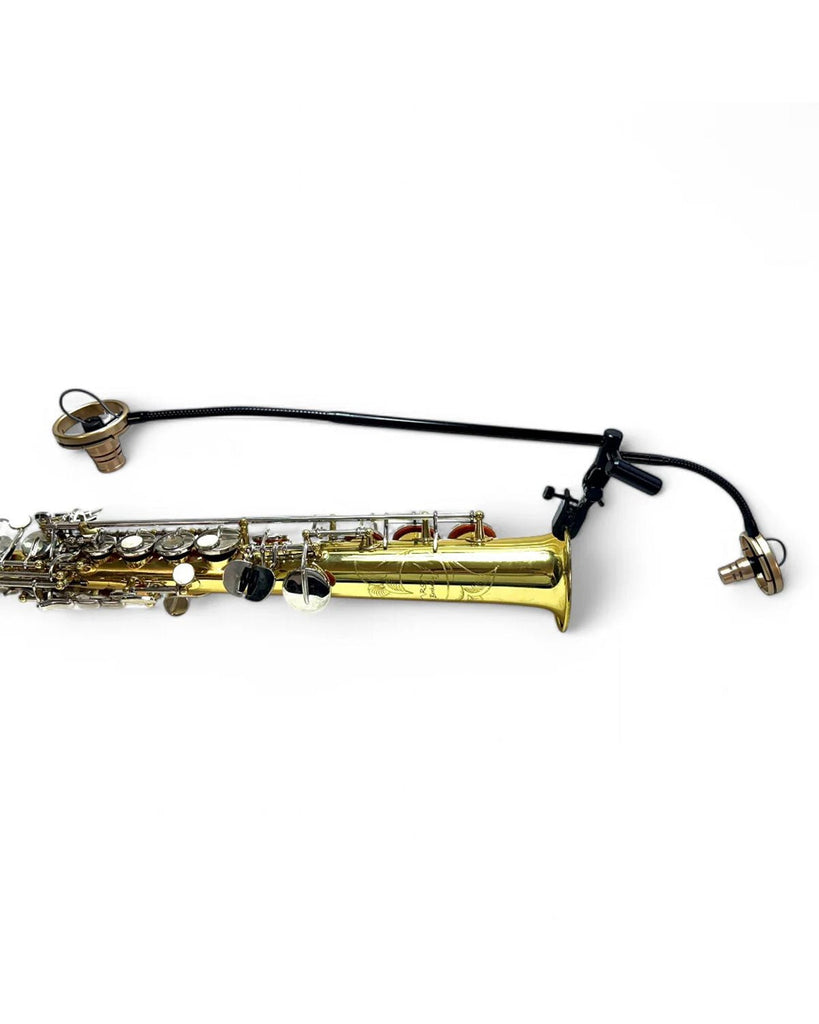

The TA6 is a multi purpose microphone system for Soprano, Tenor, Alto, and Bari saxophones. The microphone can be used as a double microphone setup for soprano saxophone like the ta2, but can be reduced to a single microphone for tenor, alto, and bari saxophones. With an optional extension kit, the ta6 can also work with straight alto and straight tenor saxophones. The ta6 can be ordered with the various AMT preamps, (inline, bp45, and studio) and also with the current AMT belt pack-less wireless systems.

It can also be used with Shure, Sennheiser, and Sabine wireless system with optional cables. Comes with the BP45 Preamp, cable, 2nd clip for additional instrument, and a case.

Quantum 7 specifications:

 • True Diversity

• Transmitter powered by one AA battery.

• Q7 Receiver includes heavy duty metal chassis with rack ears.

• 100 Channels region dependent with up to 30 MHz bandwidth.

• Compatible with all AMT instrument microphones.

• Remove transmitter to convert microphone to a wired setup.

• Wireless operation without a bodypack.

• Available for all acoustic instruments. (tpt, t-bone, sax, etc) See optional models.



Features:

True diversity for maximum distance

PLL frequency stabilization system

100 preset adjustable frequencies

IR sync from receiver to transmitter

LCD display of Radio Frequency (RF) and Audio Frequency (AF)

EIA standard 1/2 U metal chassis

Rack mountable

Designed specific for acoustic musical instruments.

Large analog style volume control for quick and easy access.



Specifications:

Comprehensive Performance:

Frequency Range: 600-928 MHz

Modulation Mode: FM

Dynamic Range: >1 0 0 dB

Frequency Response: 60 Hz-17 KH z± 3 dB

Total Harmonic Distortion: 105 dB

Power Supply: DC 12V-18V / 500 mA

Dimensions:210*170*44 mm

Audio Output: 1X XLR socket, 1X 6.3 mm jack socket

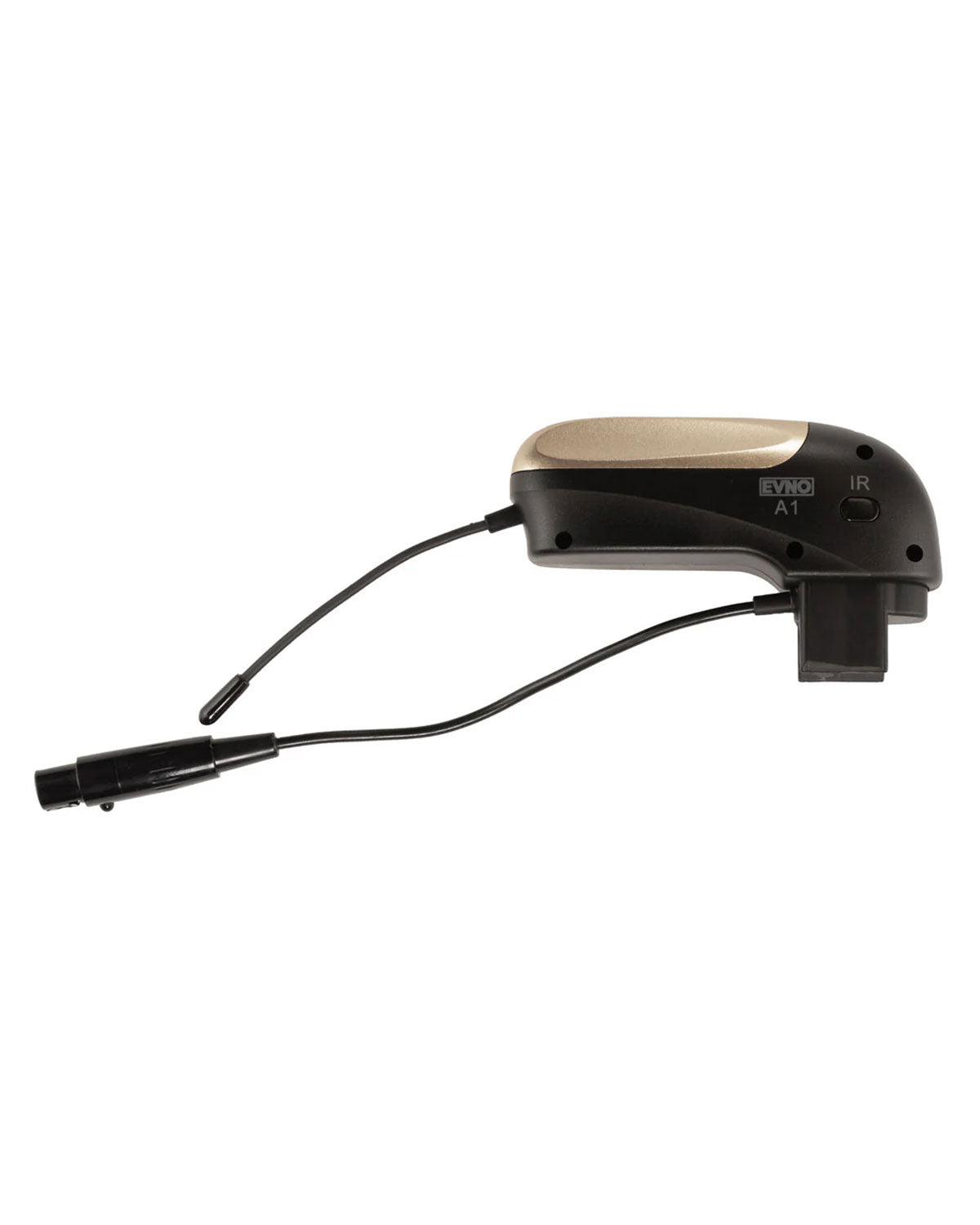

Transmitter:

Frequency Range: 600-928 M H z

RF Power: 10mW

Microphone Type: Condenser

Directivity Cardioid

Deviation: ± 48 KH z

Antenna: 1/ wave Length wire type

Battery Voltage: 1.5 V (1x1.5V AA Battery)

Power Consumption: 12-14 hours, battery-dependent
